LAT 700 Subwoofer

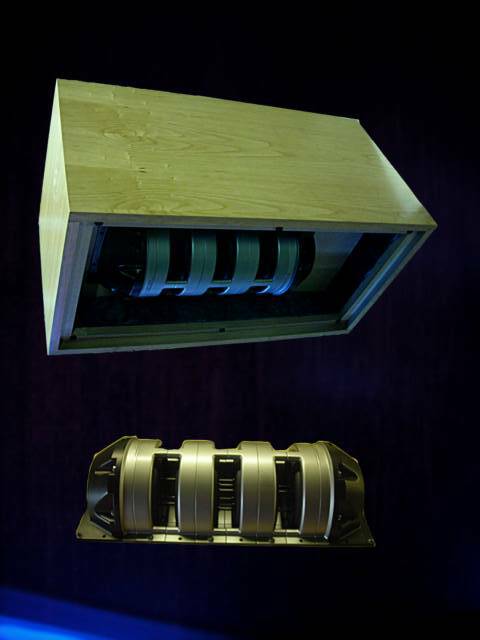

Tymphany™ LAT™ technology displaces air using a linear array of multiple smaller diaphragms. The balanced drive design is comprised of a series of coupled diaphragms that are driven by opposing end motors. One motor drives half of the diaphragms, while the other motor drives the other half in opposition. Sound radiates through multiple flow ports along the side of the housing.
Features
·Efficient Form Factor and leek profile, offering the equivalent of two 12" subwoofers in a streamlined 7" width.
·Vibration Free - with minimal or no artefacts. LAT™ has been designed with opposing end motors that cancel out structural vibration, so the transducer does not shake and will not transmit structure-born vibrations to critical circuitry in consumer products. Having done away with mechanical vibration, LAT™ eliminates the potential for rattle or buzz that vibration can cause in audio systems.

Ideal for vertical mount, betwen studs, cabinets and under stages

System design -       Sealed
Woofer LAT with dual 2" VC and multiple diaphrams- effective
                                           output appdroaches (2) 12" woofers
Amplifier     Class A/B with 380 W RMS output.
Frequency Resp.      24 Hz – 120 Hz.
Controls      Gain and Low Pass Frequency.
Switches             Phase, low pass on and on/auto/off power switch.
Inputs and outputs  Line level ( RCA jacks) and speaker level
Dimensions/weight 28"w x 11"h x 18" d, 85  lbs
Available Finishes    Oak, Cherry, Maple, Blk Gloss, Blk Satin
Specifications
