Custom Left Center Right and
Center Channels for Plasma

Application: High Intelligibility Slim line all in one unit, Left, Center and Right Channel For Widescreen TV.

Special features:  High Transfer Crossovers With Steep Attenuation Rates, Premium Drivers, High Efficiency, Uniform Amplitude Through Crossover Region, Circumferential Bracing, Elegant Appearance.

Available in Black Gloss, Cherry, Oak, Brushed Aluminum and Custom Paint
Shown in Black Gloss
(4)  5" CWC woofers, (3) 1" silk twt - Sealed -  6" h x (42" - 58" w x ( 4 - 6" d)   46 Hz - 20 kHz    $1295.00 ea
4 ohms each sector, 89 db efficiency, Min/Max Pwr - 40 - 400 W RMS

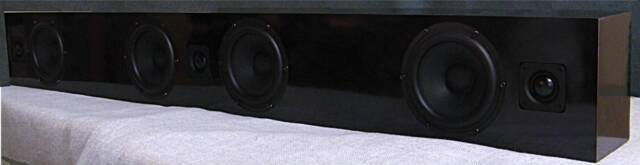

LCR 5413 CWC

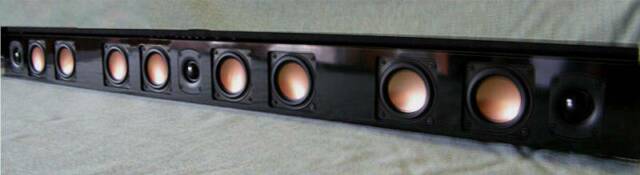

LCR 3813 HV
(8)  3" Alu/Mag woofers, (3) 1" silk twt - Sealed -  3.7" h x (46"  - 58" w x  3.5" d)   49 Hz - 20 kHz    $1495.00 ea
4 ohms each sector, 89 db efficiency,  Min/Max Pwr - 30 -300 W RMS,
Shown in Black Gloss
Slimline unit for 52" and above with exceptional clarity, power and sound stage. Quad 3" center section has extremely fast rise time and high dialogue intelligibility
Full sized CWC unit has performance of high end, separate L-R & C units. Recommended
for large screen TV's in excess of 55" Room sizes up to 600 Sq ft. .

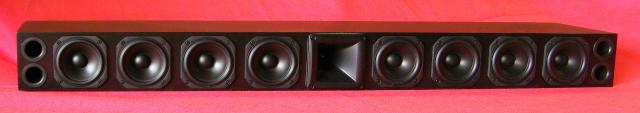

CC 4811 V/H      New!
Extreme high output and high efficiency center channel. Ideal for large Plasma/LCD or Front Projection wide screen  systems. Low profile, high intelligibility. Custom width- fit to tv .  Black gloss or textured black. Recommended room size 300 - 900 sq. ft.

(8) 4" Vifa Cast frame treated paper cone woofers  (1) modified horn tweeter, Vented - 3rd order (4) 1" dia cylindrical vents tuned to 50 Hz.  Dimensions:  5" h x 50" w (minimum) x 5.5" d., Sensitivity: 93 db @ 1W/1M, Max. SPL -120 db, Impedance: 4 ohms, Crossover- 3 pole 3rd order @ 2500 Hz. Response - 50 Hz - 20 kHz, Min/Max Power:RMS: 10 - 350 W,
$1495.00  ea

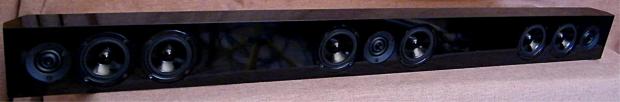

LCR 4613 D/XT New!
Designed for  large format wide screen TV the  LCR 4613 D/XT features high acceleration "D" series bass - mid units and highly touted Vifa ring radiator tweeter and ESA capacitors.  Response is very linear exceptionally smooth and detailed.
(6)  4" "D" series woofers, (3) 1" ring radiator twt - Sealed -  5" h x (48" - 68" w x ( 3" d)   46 Hz - 20 kHz
4 ohms each sector, 89 db efficiency, Min/Max Pwr - 40 - 400 W RMS     $1595.00 ea
LCR 3613 D/XT New!
Designed for  large format wide screen TV the  LCR 3613 D/XT features high acceleration "D" series bass - mid units and highly touted Vifa ring radiator tweeter.  Response is exceptionally smooth and detailed.
(6)  3" "D" series woofers, (3) 1" ring radiator twt - Sealed -  4" h x (44" - 64" w x ( 2.7" d)   66 Hz - 20 kHz
4 ohms each sector, 89 db efficiency, Min/Max Pwr - 40 - 400 W RMS     $1445.00 ea
Hookup Instructions for LCR bar speakers
LCR 3613 RIBBON
Very high articulation and projection. Clean crisp high frequencies. Capable of filling large rooms
(6)  3" Cast Vifa Woofers, (3) Ribbon/Planar  twt - Sealed -  5.5 " h x (52 " - 68" w x ( 3" d)   46 Hz - 20 kHz
4 ohms each sector, 89 db efficiency, Min/Max Pwr - 40 - 400 W RMS     $1895.00 ea
LCR 3613 Ribbon
LCR 3613
Designed for  large format wide screen TV the  LCR 3613  features cast Vifa  bass - mid units and silk dome tweeter. Excellent for it's price point and our most popular model due to its very shallow depth options
(6)  3" Vifa woofers, (3) 1" silk dome twt - Sealed -  4" h x (44" - 64" w x ( 2.2" d)   80 Hz - 20 kHz
4 ohms each sector, 89 db efficiency, Min/Max Pwr - 40 - 400 W RMS     $1195.00 ea

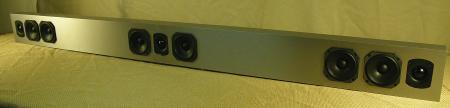

Shown in smoked brushed aluminum
LCR 3613 D - Curve  NEW!
(6)  D series woofers, (3) 1" silk dome twt - Sealed -  4.25" h x (44" - 64" w x ( 5/2" d)   74 Hz - 20 kHz
4 ohms each sector, 89 db efficiency, Min/Max Pwr - 40 - 400 W RMS     $1695.00 ea
Fits perfectly new Samsung curved 4 K sets
