SW12 HE
Our new "HE " series subwoofers feature ultra low distortion with extended deep bass. The SW 12 HE is a high output, sealed enclosure, front firing powered subwoofer designed for home theater and audiophile use. Recommended for rooms of 250 square feet or greater it features new and advanced motor system technology.  A 12"  hi flux, cast woofer,with rigid aluminum cone, has a very large  90 oz double stacked magnet, with proprietary shorting rings, to lower distortion.  A dedicated class A/B power amplifier, 46lb. all MDF "no flex" construction with circumferential bracing, and rigid panel fastening system make the SW12 D/FF ideal for large home theaters where high output and sustained bass are desired. Response is uniform to 25 Hz
System design -       Sealed

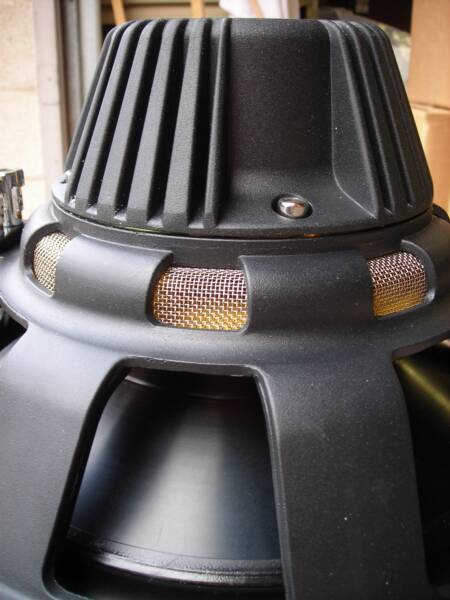

Woofer 12”  Hi Flux/ 90 oz mag.   - Enhanced  Motor
Amplifier        500 W Standard- Class A/B:
Response    25 Hz - 120 Hz,
Controls      Gain and Low Pass Frequency.
Switches             Phase, low pass on and on/auto/off power switch.
Inputs and outputs  Line level ( RCA jacks) and speaker level
Dimensions/weight 14." w x 14." h x 17" d - with heat sinks and grille. 80 lbs
Available Finishes    Oak, Cherry, Maple, Blk Gloss, Blk Satin

Source Technologies, 701 Nutmeg Road N. South Windsor, CT. 06074
(860) 916  4695
