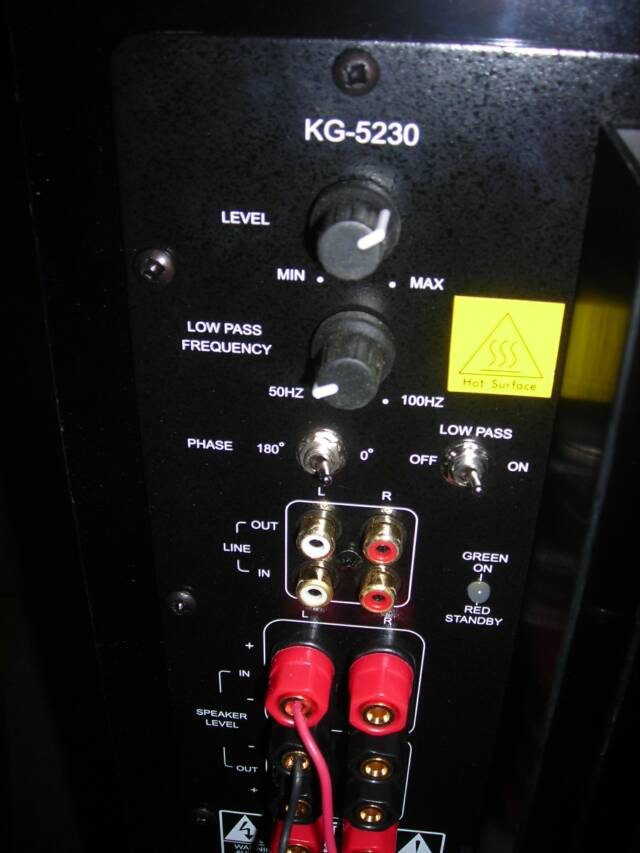

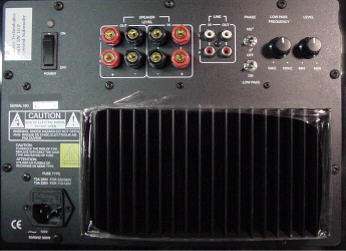

Models UFS 12,10 and 8/9 P powered under floor subwoofers feature high output, linear bass response, solid 46 lb. exterior grade MDF construction, proprietary high energy HV bass loading, cast aluminum woofers and a high power, reliable class AB power amplifier. In addition the bottom panel and driver baffle are removable for fast, easy service. High density cabinet panels prevent flexing and bass loss. Built in power amplifier has an array of controls and features. A dedicated amplifier chamber for necessary isolation of circuit board components provides increased longevity and better sonic performance.
Bass output vent is designed to fit most heating and air conditioning ducts. Ideal for the upscale installation where performance and power are essential. Available with amplifier built in or separate in its own enclosure.
.
System design - Sealed band pass, under floor subwoofer
Magnet size & VC - 12” 50 oz, 2 “ vc (UFS 12P). 10” 40 oz – 1.5”vc (UFS 10 P), 8" 30 oz (UFS 8 P)
Woofer Frame
Rigid Cast Aluminum on all models
Amplifier power 270 W RMS all models
Maximum output111 db ( UFS 12), 106 db ( UFS 10) , 102 db ( UFS 8)
Frequency response 35 Hz – 120 Hz(12 P) 39 Hz- 120 Hz (10 P), 44 hz - 120 Hz (8 P)
Dimensions 32”L x 11.5” h x 14” W– UFS 12; 32”L x 10.5” h x 13” W - UFS 10;
32" L x 11.5 h x 9" W - UFS 8/9 P
Floor Register Size4" x 14 "
Recommended Room Size - 200 - 500 sq ft (UFS 12); 200-400 sq ft (UFS10); 150-300 sq ft (UFS 8)
Wt -incl attached amp 69 lbs (UFS 12 P). 62 lbs (UFS 10 P), 52 lbs (UFS 8 P)
