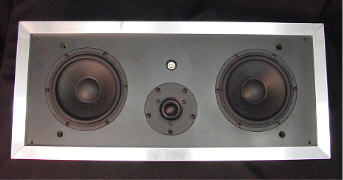

The IW 266 WCC is a premium grade Quiet Cone™wool/carbon in-wall center channel system designed to optimize high end multi channel systems. Turned 90 degrees it also makes an excellent main left and right channel system. Proprietary cast wool /carbon Quiet Cone™ woofers, and 1” Vifa™ silk dome tweeter provide outstanding performance with superior dynamics and power bandwidth. Dialogue intelligibility, precise tonality and high power handling are much higher than any standard inwall speaker. A rugged 1” wide aluminum mounting frame (not plastic) is fastened to a massive ¾” thick MDF baffle. Source Tech proprietary inner support trestle bar assembly is comprised of ¾” thick rigid 13 ply birch and couples, via ¼” steel bolts, to provide a much higher level of rigidity and support. “Flexing”, common to standard plastic based inwalls, is a form of detrimental phase distortion caused by “moving panels”. This is eliminated in the IW 266 WC . A significant improvement in performance is realized because the front baffle/wall interface DOES NOT “move”. A minimum phase HQ crossover includes polypropylene capacitors and a customized level control that optimizes high frequency response for prevailing room acoustics.
IW 266 WC
System DesignDual 6” 3 way in wall system.
Woofers (2) – 6” Wool/Carbon / cast frame
Tweeter (1)- Vifa DX HQ dome tweeter.
Frequency Resp. 45 hz- 20 khz, if mounted in back box
Impedance 6 ohms
Sensitivity 91 db
Construction Rigid aluminum 1" wide, with HD ¾” front baffle .
Wall mounting ¾” birch ply trestle with ¼” steel bolts
Grille / Color MDF/ with a wide variety of fabrics to match wall color
Hole Cut Out/ Depth 9.5" x 23.5"/ 3.5", 9.5 x 26" x 5.5" with back box.
Overall Size 11” h x 25” w , 11" h x 27.5" with back box
